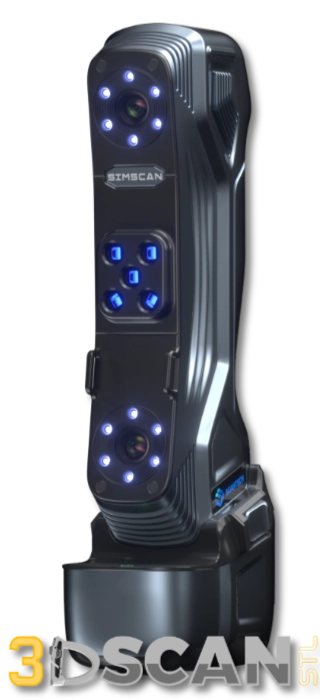

Reverse Engineering with the Scantech Simscan-E Laser Scanner

When it comes to extremely precise scanning for reverse engineering, we use the Scantech Simscan-E.

The SIMSCAN-E is an intelligent, wireless, and palm-sized 3D scanner that combines a lightweight design with exceptional performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless and free 3D scanning.

With robust algorithm and high-definition industrial cameras, SIMSCAN-E can capture 3D data with remarkable precision and efficiency, measuring up to 6.3 million measurements/s. It boasts three scanning modes, ultra-fast, hyperfine, and deep hole. This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex structures.
Powered by its innovative algorithm and aerospace-grade components, its measurement accuracy is up to 0.020 mm, meeting the demands of industrial-grade high-precision 3D scanning and measurement. From product development to inspection, we help users track and record the data during the entire product lifecycle.
Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as gaps, slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection, analysis, and more.

Features:

  • Ultra-fast scanning – 63 blue laser lines (Triple Cross Technology)
  • Hyperfine scanning – 17 blue parallel laser lines
  • Deep hole scanning – 1 extra blue laser line
  • Accuracy – Up to 0.020 mm
  • Scanning rate up to 6,300,000 measurements/s
  • Scanning area up to – 700 mm × 600 mm

When it comes to extremely precise scanning for reverse engineering, we use the Scantech Simscan-E.

The Simscan-E is an intelligent, wireless, and palm-sized 3D scanner from Scantech that combines a lightweight design with exceptional performance. Featuring advanced edge computing and wireless data transfer, it sets a new standard for flexible, wireless, and free 3D scanning.

With robust algorithms and high-definition industrial cameras, the Simscan-E can capture 3D data with remarkable precision and efficiency, measuring up to 6.3 million measurements per second. It boasts three scanning modes: ultra-fast, hyperfine, and deep hole. This versatility allows it to handle a wide range of tasks effortlessly, from scanning in tight spaces to measuring complex structures.

Powered by its innovative algorithm and aerospace-grade components, the Simscan-E’s measurement accuracy is up to 0.020 mm, meeting the demands of industrial-grade high-precision 3D scanning and measurement. From product development to inspection, we help users track and record data throughout the entire product lifecycle.

Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as gaps, slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection, analysis, and more.

Expanded Details on Simscan-E Capabilities

Advanced Wireless Connectivity

The Simscan-E utilizes cutting-edge Wi-Fi protocols to enable seamless wireless communication with your workstation or tablet. This eliminates the clutter of cables during operation and allows you to move freely around complex objects without restrictions.

Edge Computing Power

Equipped with onboard processing capabilities—known as edge computing—the device processes raw scan data in real time. This reduces latency in capturing detailed 3D models and minimizes reliance on external hardware for immediate feedback during scanning sessions.

User-Friendly Operation

Designed with ergonomics in mind, its palm-sized form factor fits comfortably in hand for extended use without fatigue. The intuitive interface offers quick access to scan settings so you can switch modes or adjust parameters on-the-fly without interrupting workflow.

Versatile Scanning Modes Explained

  • Ultra-fast mode leverages triple cross laser technology (63 blue lines) for rapid surface coverage—ideal when speed is critical without sacrificing detail.
  • Hyperfine mode uses 17 parallel laser lines focusing on fine details where higher resolution is paramount.
  • Deep hole mode employs a specialized single blue laser line optimized for penetrating narrow cavities that are difficult for conventional scanners.

Enhanced Data Quality Features

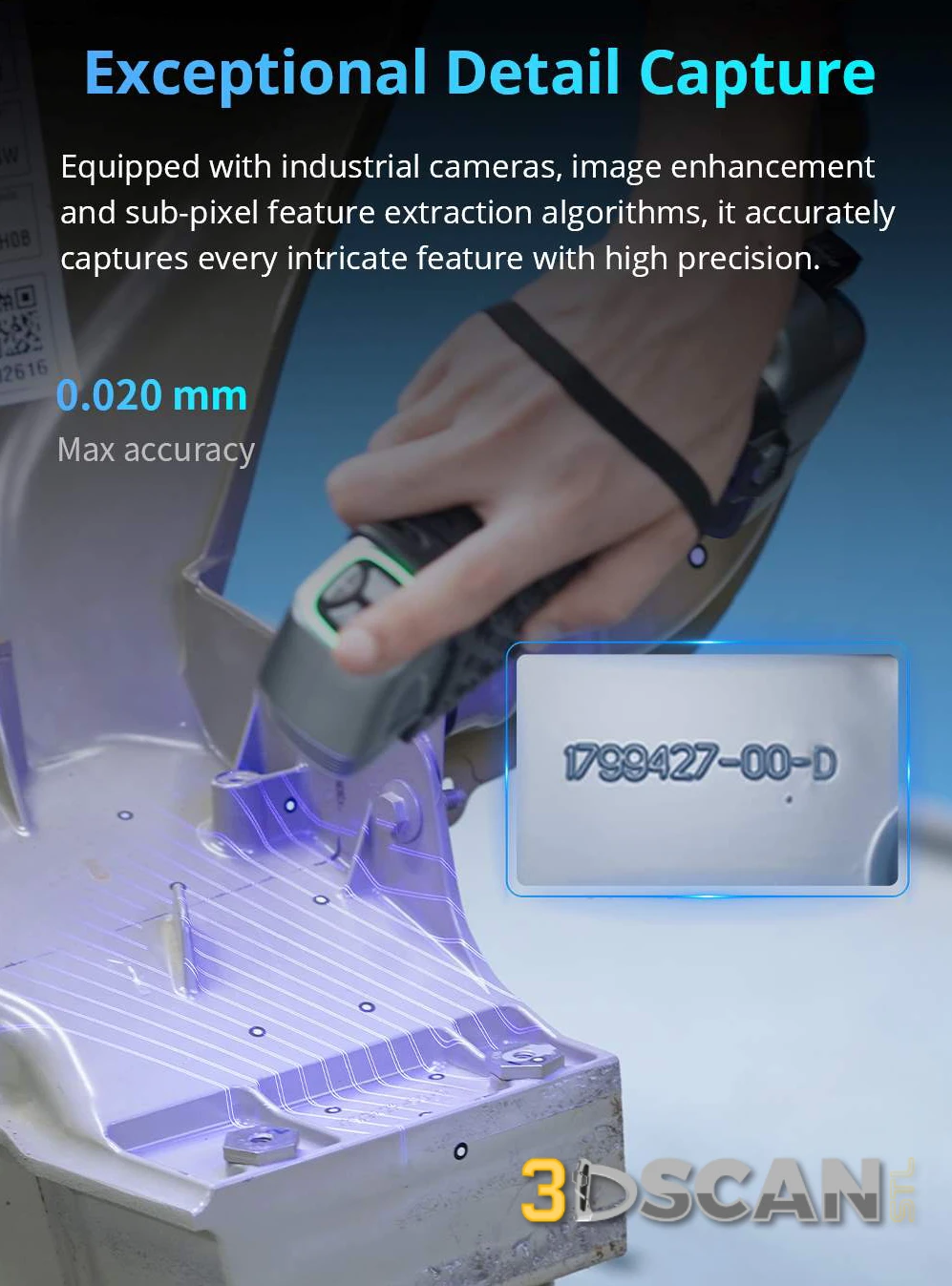

The steep camera angle combined with high dynamic range imaging ensures excellent capture of surface textures even under challenging lighting conditions. This results in richer color maps alongside geometric accuracy—useful for applications like quality control or digital archiving.

Key Specifications at a Glance

  • Scanning Rate: Up to 6,300,000 measurements per second
  • Measurement Accuracy: Up to ±0.020 mm
  • Scanning Area: Maximum coverage of 700 mm × 600 mm per scan session
  • Portability: Wireless operation with rechargeable battery lasting multiple hours per charge
  • This combination of features makes the Simscan-E an indispensable tool for professionals involved in reverse engineering who demand precision without compromising mobility or ease of use.
